Rochester M4MC / M4ME Carburetor Manual
Complete service manual: Comprehensive factory service information for Rochester Quadrajet M4MC carburetors. Includes theory, diagrams, detailed specifications, tune-up data and complete overhaul procedures. Fast, secure e-book download.
Covers 1975-1980 Chevrolet engine applications including Chevrolet and GMC Truck and 1977-1980 Cadillac carburetors.
Ordering Information
Price: $6.95
Pages: 122
Download Size: 87 MBytes

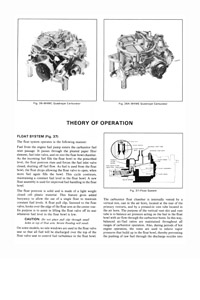

Thumbnails
Carburetor Numbers Covered by This Manual
| 9086 |
| 7045200 |
| 7045202 |
| 7045203 |
| 7045206 |
| 7045207 |
| 7045210 |
| 7045211 |
| 7045218 |
| 7045219 |
| 7045220 |
| 7045222 |
| 7045223 |
| 7045224 |
| 7045228 |
| 7045294 |
| 7045338 |
| 7045502 |
| 7045503 |
| 7045504 |
| 7045506 |
| 7045507 |
| 7045512 |
| 7045517 |
| 7047513 |
| 7047536 |
| 7047537 |
| 7047538 |
| 7047539 |
| 17052563 |
| 17052564 |
| 17052576 |
| 17052577 |
| 17052578 |
| 17052579 |
| 17052580 |
| 17052582 |
| 17052584 |
| 17052594 |
| 17052604 |
| 17052646 |
| 17052647 |
| 17052900 |
| 17052905 |
| 17052910 |
| 17052915 |
| 17052917 |
| 17052921 |
| 17052922 |
| 17052923 |
| 17052925 |
| 17052947 |
| 17052948 |
| 17054317 |
| 17054703 |
| 17054704 |
| 17054706 |
| 17054707 |
| 17054717 |
| 17054922 |
| 17054924 |
| 17054933 |
| 17055038 |
| 17055117 |
| 17055121 |
| 17055122 |
| 17055123 |
| 17055124 |
| 17055128 |
| 17055129 |
| 17055131 |
| 17055132 |
| 17055137 |
| 17055138 |
| 17055160 |
| 17055161 |
| 17055199 |
| 17055238 |
| 17055375 |
| 17055505 |
| 17055551 |
| 17055554 |
| 17055555 |
| 17055670 |
| 17055720 |
| 17055738 |
| 17055748 |
| 17055801 |
| 17055810 |
| 17055820 |
| 17055824 |
| 17055826 |
| 17055827 |
| 17055828 |
| 17055829 |
| 17055830 |
| 17055831 |
| 17055832 |
| 17055833 |
| 17055835 |
| 17055870 |
| 17055871 |
| 17055873 |
| 17055876 |
| 17055877 |
| 17055888 |
| 17056200 |
| 17056202 |
| 17056203 |
| 17056206 |
| 17056207 |
| 17056210 |
| 17056211 |
| 17056221 |
| 17056226 |
| 17056228 |
| 17056286 |
| 17056502 |
| 17056503 |
| 17056506 |
| 17056507 |
| 17056512 |
| 17056517 |
| 17056528 |
| 17057202 |
| 17057203 |
| 17057204 |
| 17057209 |
| 17057210 |
| 17057211 |
| 17057221 |
| 17057228 |
| 17057231 |
| 17057232 |
| 17057234 |
| 17057235 |
| 17057502 |
| 17057503 |
| 17057504 |
| 17057512 |
| 17057517 |
| 17057582 |
| 17057584 |
| 17057586 |
| 17057588 |
| 17058210 |
| 17058211 |
| 17058228 |
| 17058230 |
| 17058232 |
| 17058233 |
| 17058398 |
| 17058399 |
| 17058463 |
| 17058464 |
| 17058465 |
| 17058466 |
| 17058467 |
| 17058468 |
| 17058472 |
| 17058473 |
| 17058474 |
| 17058477 |
| 17058479 |
| 17058501 |
| 17058501 |
| 17058503 |
| 17058506 |
| 17058508 |
| 17058509 |
| 17058509 |
| 17058510 |
| 17058510 |
| 17058512 |
| 17058512 |
| 17058518 |
| 17058519 |
| 17058520 |
| 17058520 |
| 17058521 |
| 17058521 |
| 17058522 |
| 17058523 |
| 17058524 |
| 17058527 |
| 17058528 |
| 17058530 |
| 17058531 |
| 17058532 |
| 17058533 |
| 17058535 |
| 17058560 |
| 17058586 |
| 17058586 |
| 17058588 |
| 17058588 |
| 17059061 |
| 17059065 |
| 17059066 |
| 17059068 |
| 17059069 |
| 17059076 |
| 17059077 |
| 17059201 |
| 17059205 |
| 17059206 |
| 17059208 |
| 17059209 |
| 17059210 |
| 17059211 |
| 17059226 |
| 17059227 |
| 17059228 |
| 17059230 |
| 17059232 |
| 17059363 |
| 17059366 |
| 17059368 |
| 17059377 |
| 17059378 |
| 17059501 |
| 17059503 |
| 17059506 |
| 17059508 |
| 17059509 |
| 17059510 |
| 17059520 |
| 17059521 |
| 17059527 |
| 17059528 |
| 17059530 |
| 17059532 |
| 17059586 |
| 17059588 |
| 17065121 |
| 17065348 |
| 17065351 |
| 17065420 |
| 17065433 |
| 17065439 |
| 17065530 |
| 17065531 |
| 17065532 |
| 17065533 |
| 17065723 |
| 17065793 |
| 17065796 |
| 17065799 |
| 17065917 |
| 17066540 |
| 17066549 |
| 17066550 |
| 17066551 |
| 17066555 |
| 17066561 |
| 17066573 |
| 17066601 |
| 17066703 |
| 17067034 |
| 17067036 |
| 17067037 |
| 17067039 |
| 17080201 |
| 17080205 |
| 17080206 |
| 17080224 |
| 17080226 |
| 17080227 |
| 17080230 |
| 17080231 |
| 17080290 |
| 17080291 |
| 17080292 |
| 17080295 |
| 17080527 |
| 17080528 |
Table of Contents
- Quadrajet M4MC / M4ME Quadrajet
- General Description
- Theory of Operation / Float System
- Idle System, EGR
- Main Metering System, APT
- Power System
- Air Valve Dashpot
- Accelerating Pump, Choke System
- Choke System
- Maintenance and Adjustment
- Service Operations
- Diagnosis
- Unit Repair - M4MC Quadrajet (Rebuilding)
- Disassembly
- Air Horn
- Choke
- Throttle Body
- Cleaning and Inspection / Assembly
- Float Level Adjustment
- Carburetor Parts Listings
- 1977 Cadillac 425
- 1977 Cadillac 425 (Late)
- 1978 Cadillac 425
- 1978 Cadillac 425 - Eldorado, California Early
- 1975 Chevrolet 350 M4MCA
- 1975 Nova 350 M4MCA
- 1975 Corvette 350 M4MC
- 1975 Chevrolet 7045200 7045228 4045224 4045504
- 1975 Chevelle Monte Carlo Canada
- 1976 Chevrolet 17056202 17056203 7056502 7056503
- 1976 Corvette, Nova 350
- 1976 Corvette High Performance
- 1976-77 Chevrolet Canada 17056281 1756282 1756286
- 1976 Chevrolet 400-454
- 1977 Chevrolet 350
- 1977 Chevrolet Camaro, Nova, Corvette
- 1978 Chevrolet 350
- 1978 Chevrolet 350 High Perf
- 1978 Chevrolet M4MC Canada Z-94
- 1979 Chevrolet 305 17059297
- 1979 Chey Malibu, Monte Carlo 2.29 Axle
- 1979 Chevrolet 305 Altitude
- 1979 Chevrolet 17059216, 17059217
- 1979 Camaro, Corvette 350
- 1979 Corvette L-82
- 1979 Chevy 350 Canada Z-94
- 1979 Chevrolet 350 California
- 1979 Chevrolet 350 California 17059582, 584
- 1975 Chevy GMC Truck 350 M4MCA
- 1975 Chevy GMC Truck 454 M4MCA
- 1976 Chevy GMC Truck Light Duty
- 1976 Chevy GMC Truck Light Duty - 2
- 1976 Chevy GMC Light Duty 350
- 1976 Chevy GMC Canada
- 1976 Chevy GMC 454
- 1977 Chevy GMC 350 Light Duty
- 1977 Chevy GMC Light Duty 350 - 2
- 1977 Chevy GMC Light DUty 350 Altitude
- 1977 Chevy GMC LIght & Heavy Duty
- 1978 Chevy GMC Light Duty 350
- 1978 Chevy GMC Light Duty 350 California
- 1978 Chevy GMC Light Duty 350 Altitude
- 1978 Chevy GMC Light Duty 400
- 1978 Chevy GMC 454 Heavy Duty
